India Mark-II

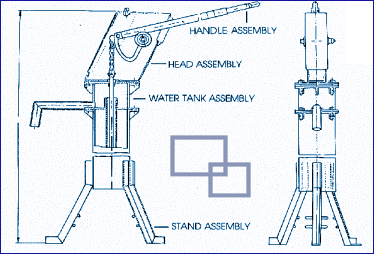

Handpump: It is divided into four main assemblies:
-
Head
Assembly: Pump Head Assembly (above
ground mechanism) consists of Head with
Inspection cover, Third plate, Handle, Water
chamber and Stand.
-
Cylinder
Assembly:Cast
Iron Body painted outside and lined from
inside with seamless Brass liner of 63.5mm
I.D., Gun-metal valve components and Nitrile
rubber components. Discharge capacity is 15
ltrs @ 40 strokes per min.
-
Connecting
Rod: 12 mm dia mild steel
electrogalvanized, in three metre lengths with
hexagonal coupling at both the ends.
- Riser Pipe (Drop Pipe):
32 mm N.B., G.I. medium pipe in three metres
length with a socket at one end.
- Installation:
Simple Installation. When installed properly it
gives very long uninterrupted service. For step
by step installation procedure and other
details, please refer to our Installation and
Maintenance Manual.
|
